Extra information

System documentation: [Startdeliver API Reference] Startdeliver Connector Package Documentation

​

Setting up HTTP Client Startdeliver

​

Steps

• In Alumio Dashboard, go to Clients > HTTPS Client. Create a new HTTP Client and select Startdeliver HTTP Client as the prototype of the HTTP Client.
• Fill in the Base URI, and Choose the Authentication Type, and Api key.
• Save the Client for use later.

​

Subscribing to Entities from Startdeliver

​

Steps

• Go to Connections -> Incoming and create a new incoming configuration and select Startdeliver Subscriber as the subscriber.
• Select the entity you want to subscribe from Startdeliver .
• Add any request parameters needed to subscribe to the entity (optional).
• You can optionally add a transformer to transform the request parameters into something you need.
• Select the Startdeliver HTTP Client to use.

​

General Concept

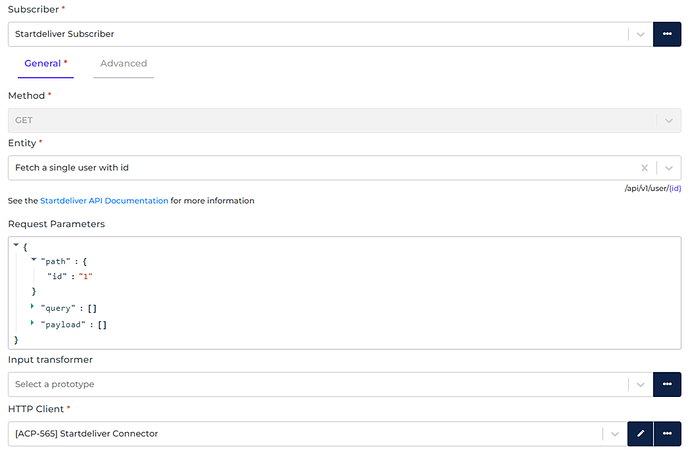

We follow Startdeliver documentation on building this connector so you can easily use the connector based on Startdeliver API Reference. Entity It’s the entity you want to subscribe from Startdeliver . Please refer to the entities in Management APIs from Startdeliver API Reference page. Request Parameters These are the parameters you can provide to get the needed entity based on Startdeliver API Reference. Please look at the example below on how to fill the Request Parameters field when subscribing Fetch a single user with id. That’s why we need to define the id property inside the path property in the Request Parameters field. The properties inside query parameters will be parsed as query parameters. Here is the final URL that will be called when using such Request Parameters field on Fetch a single user with id. /api/v1/user/1 Input Transformer Any transformer’s set here will be executed after the Request Parameters are loaded. So, you basically can add any transformer to provide and transform the request parameters into anything you need either as path parameters and/or as query parameters of an entity. HTTP Client It’s the HTTP Client configuration or prototype you will use to access Startdeliver .

​

Publishing Entity to Startdeliver

​

Steps

• Go to Connections -> Outgoing, create a new outgoing configuration, and select Startdeliver Publisher as the publisher.
• Select the action that you want the publisher to do with the data.
• Select the Startdeliver entity you want the data to be published.
• You can optionally add any query parameters to the request.
• You can also optionally add any transformers to transform the data into anything you need before submitting it to Startdeliver .
• Select the HTTP Client to use.

​

General Concept

Like the subscriber, the publisher has similar methods on how to use it. The difference is the payload that will be submitted by the publisher originating from the data (from routes, from transformers in outgoing configuration), though you can also add or modify payload using the Request Transformer. Method Currently, we support Post (HTTP POST method), Put (HTTP PUT method), Patch (HTTP PATCH method), and Delete (HTTP DELETE method). Entity We support publishing to most Startdeliver endpoints. Please refer to the entities in Management APIs from the Startdeliver API Reference page. Based on the documentation, some endpoints may need one or more path parameters. For endpoints that require an object as the request payload, please look at the example below. For example, we want to Create a new customer. Please select “Post” as the action and “Create new customer” as the entity of the publisher. You can put the payload you want to send to Startdeliver into the payload property in the data. Alumio will send an API request to Startdeliver with URL /client/v4/zones/Alumio/purge_cache HTTP Client It’s the HTTP Client configuration or prototype you will use to access Startdeliver .
