System documentation: Atlassian Jira Cloud

​

Connector Package Documentation**

​

Setting up HTTP Client Atlassian Jira Cloud

​

Steps

1. In Alumio Dashboard, go to Clients > HTTP Clients. Create a new HTTP Client and select Atlassian Jira Cloud HTTP Client as the prototype of the HTTP Client.
2. Fill in the Base URI, Username, and Password.

​

Subscribing to Entities from Atlassian Jira Cloud

​

Steps

1. Go to Connections -> Incoming and create a new incoming configuration and select Atlassian Jira Cloud Subscriber as the subscriber.
2. Select the entity you want to subscribe from Atlassian Jira Cloud.
3. Add any request parameters needed to subscribe to the entity (optional).
4. You can optionally add a transformer to transform the request parameters into something you need.

​

Select the Atlassian Jira Cloud HTTP Client to use. General Concept

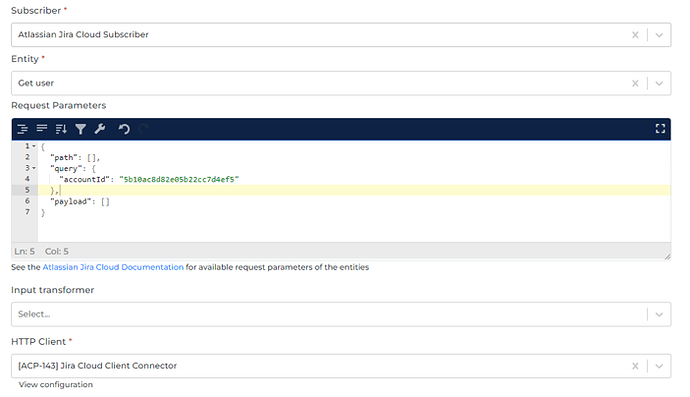

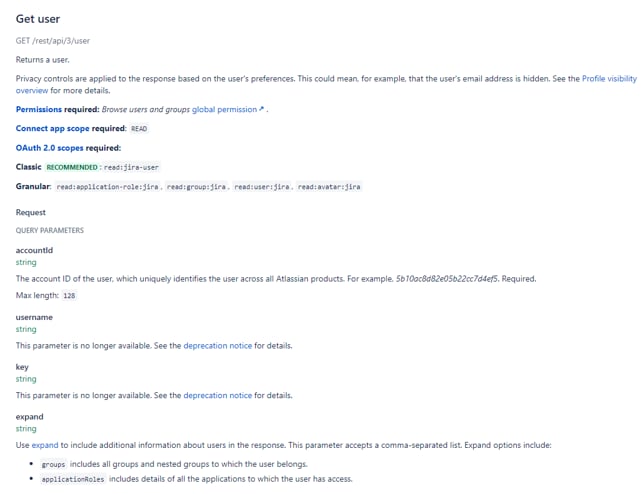

We follow Atlassian Jira Cloud documentation on building this connector so you can easily use the connector based on Atlassian Jira Cloud API Reference. Entity It’s the entity you want to subscribe from Atlassian Jira Cloud. Please refer to the entities in Management APIs from Atlassian Jira Cloud API Reference page. Request Parameters These are the parameters you can provide to get the needed entity based on Atlassian Jira Cloud API Reference. Please look at the example below on how to fill Request Parameters field when subscribing Single Request entity The properties inside query parameters will be parsed as query parameters. Here is the final URL that will be called when using such Request Parameters field on coupon entity. /rest/api/3/user?accountId= 5b10ac8d82e05b22cc7d4ef5 Input Transformer Any transformer’s set here will be executed after the Request Parameters loaded. So, you basically can add any transformer to provide and transform the request parameters into anything you need either as path parameters and/or as query parameters of an entity. HTTP Client It’s the HTTP Client configuration or prototype you will use to access Atlassian Jira Cloud.

​

Publishing Entity to Atlassian Jira Cloud

​

Steps

1. Go to Connections -> Outgoing, create a new outgoing configuration and select Atlassian Jira Cloud Publisher as the publisher.
2. Select the action that you want the publisher to do with the data.
3. Select the Atlassian Jira Cloud entity you want the data to be published to.
4. Select the HTTP Client to use.

​

General Concept

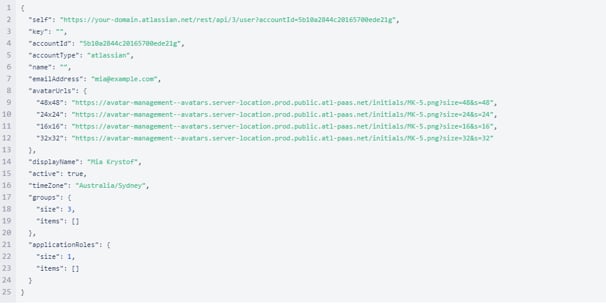

Like the subscriber, the publisher has similar methods on how to use it. The difference is the payload that will be submitted by the publisher originating from the data (from routes, from transformers in outgoing configuration). Action Currently we support Create (HTTP POST method), Update (HTTP PUT method), and Delete (HTTP DELETE method). Entity We support publishing to most Atlassian Jira Cloud endpoints but not with publishing binary files at the moment. Please refer to the entities in Management APIs from Atlassian Jira Cloud API Reference page. Based on the documentation, some endpoints may need one or more path parameters. For endpoints that require object as the request payload, please look at the example below. For example, we want to Create a User. Please select “Create” as the action and “Create User” as the entity of the publisher. You can put the payload you want to send to Atlassian Jira Cloud into payload property in the data. Here is an example of the Possible Response after Creation. Alumio will send an API request to Atlassian Jira Cloud with URL /rest/api/3/user HTTP Client It’s the HTTP Client configuration or prototype you will use to access Atlassian Jira Cloud.
