Extra information

System documentation: [BlueSnap API Reference] BlueSnap Connector Package Documentation

​

Setting up HTTP Client BlueSnap

​

Steps

• In Alumio Dashboard, go to Clients > HTTPS Client. Create a new HTTP Client and select BlueSnap HTTP Client as the prototype of the HTTP Client.
• Fill in the Base URI, Username, and Password.
• Save the Client for use later.

​

Subscribing to Entities from BlueSnap

​

Steps

• Go to Connections -> Incoming and create a new incoming configuration and select BlueSnap Subscriber as the subscriber.
• Select the entity you want to subscribe from BlueSnap .
• Add any request parameters needed to subscribe to the entity (optional).
• You can optionally add a transformer to transform the request parameters into something you need.
• Select the BlueSnap HTTP Client to use.

​

General Concept

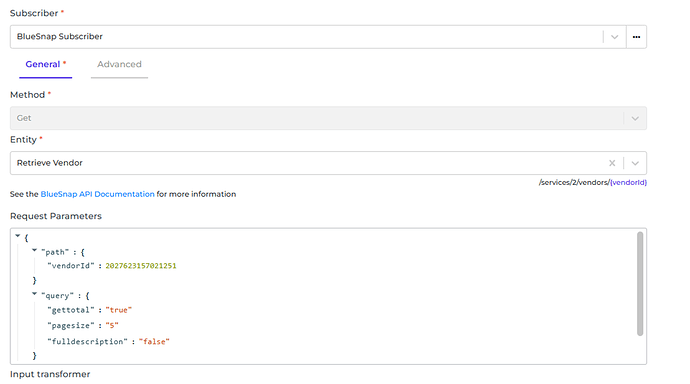

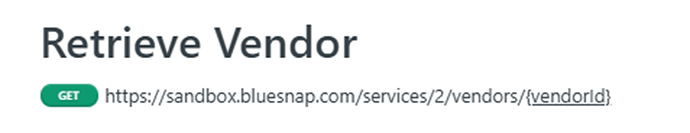

We follow BlueSnap documentation on building this connector so you can easily use the connector based on BlueSnap API Reference. Method It’s the Method you want to subscribe from BlueSnap. Based on the Method, the Entity will change. Please refer to the entities in Management APIs from BlueSnap API Reference page. Entity It’s the entity you want to subscribe from BlueSnap . Please refer to the entities in Management APIs from BlueSnap API Reference page. Request Parameters These are the parameters you can provide to get the needed entity based on BlueSnap API Reference. Please look at the example below on how to fill the Request Parameters field when subscribing Retrieve Vendor. That’s why we need to define the vendorId property inside the path property in the Request Parameters field. The properties inside query parameters will be parsed as query parameters. Here is the final URL that will be called when using such Request Parameters field on Retrieve Vendor. /services/2/vendors/20231512057123123 Input Transformer Any transformer’s set here will be executed after the Request Parameters are loaded. So, you basically can add any transformer to provide and transform the request parameters into anything you need either as path parameters and/or as query parameters of an entity. HTTP Client It’s the HTTP Client configuration or prototype you will use to access BlueSnap .

​

Publishing Entity to BlueSnap

​

Steps

• Go to Connections -> Outgoing, create a new outgoing configuration, and select BlueSnap Publisher as the publisher.
• Select the action that you want the publisher to do with the data.
• Select the BlueSnap entity you want the data to be published.
• You can optionally add any query parameters to the request.
• You can also optionally add any transformers to transform the data into anything you need before submitting it to BlueSnap .
• Select the HTTP Client to use.

​

General Concept

Like the subscriber, the publisher has similar methods on how to use it. The difference is the payload that will be submitted by the publisher originating from the data (from routes, from transformers in outgoing configuration), though you can also add or modify payload using the Request Transformer. Method Currently, we support Post (HTTP POST method), Put (HTTP PUT method), and Delete (HTTP DELETE method). Entity We support publishing to most BlueSnap endpoints. Please refer to the entities in Management APIs from the BlueSnap API Reference page. Based on the documentation, some endpoints may need one or more path parameters. For endpoints that require an object as the request payload, please look at the example below. For example, we want to Create Vendor. Please select “Post” as the action and “Create Vendor” as the entity of the publisher. You can put the payload you want to send to BlueSnap into the payload property in the data. Alumio will send an API request to BlueSnap with URL /services/2/vendors HTTP Client It’s the HTTP Client configuration or prototype you will use to access BlueSnap .
