Extra information

System documentation:

​

Connector package documentation

​

Setting up HTTP Client Orderwise ERP

​

Steps

1. In Alumio Dashboard, go to Clients > HTTPS Client. Create a new HTTP Client and select Orderwise ERP Client as the prototype of the HTTP Client.
2. Fill in the Base URI, Username, Password.
3. On Top right, press Save & Continue.

​

Subscribing to Entities from Orderwise ERP

​

Steps

1. Go to Connections -> Incoming and create a new incoming configuration and select Orderwise ERP Subscriber as the subscriber.
2. Select the entity you want to subscribe from Orderwise ERP.
3. Add any request parameters needed to subscribe to the entity using Template.
4. You can optionally add a transformer to transform the request parameters into something you need.
5. Select the Orderwise ERP HTTP Client to use.

​

General Concept

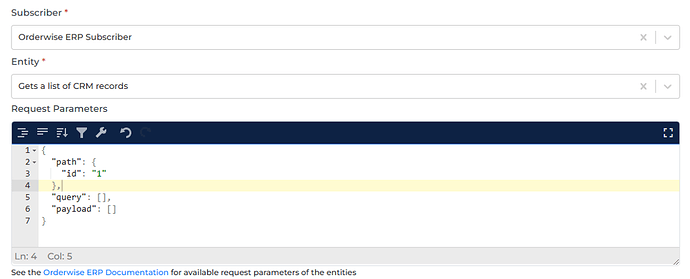

We follow Orderwise ERP documentation on building this connector so you can easily use the connector based on Orderwise ERP API Reference. Entity It’s the entity you want to subscribe from Orderwise ERP. Please refer to the entities in Management APIs from Orderwise ERP API Reference page. Request Parameters These are the parameters you can provide to get the needed entity based on Orderwise ERP API Reference. Please look at the example below on how to fill Request Parameters field when subscribing Single Request entity That’s why we need to define id property inside path property in the Request Parameters field. The properties inside query parameters will be parsed as query parameters. Here is the final URL that will be called when using such Request Parameters field on Gets a List of CRM record entity. /crm/1 Input Transformer Any transformer’s set here will be executed after the Request Parameters loaded. So, you basically can add any transformer to provide and transform the request parameters into anything you need either as path parameters and/or as query parameters of an entity. HTTP Client It’s the HTTP Client configuration or prototype you will use to access Orderwise ERP.

​

Publishing Entity to Orderwise ERP

​

Steps

1. Go to Connections -> Outgoing, create a new outgoing configuration and select Orderwise ERP Publisher as the publisher.
2. Select the action that you want the publisher to do with the data.
3. Select the Orderwise ERP entity you want the data to be published to.
4. Select the HTTP Client to use.

​

General Concept

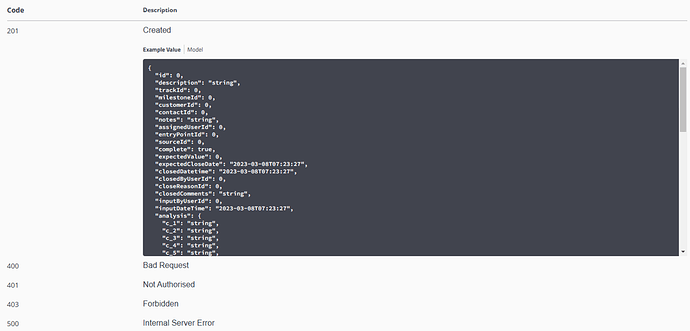

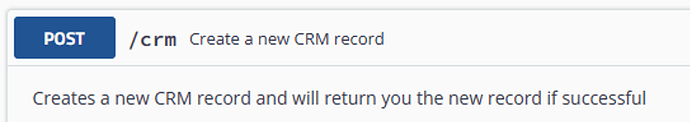

Like the subscriber, the publisher has similar methods on how to use it. The difference is the payload that will be submitted by the publisher originating from the data (from routes, from transformers in outgoing configuration). Action Currently, we support Create (HTTP POST method), Put (HTTP PUT method), and Delete (HTTP DELETE method). Entity We support publishing to most Orderwise ERP. Please refer to the entities in Management APIs from Orderwise ERP API Reference page. Based on the documentation, some endpoints may need one or more path parameters. For endpoints that require an object as the request payload, please look at the example below. For example, we want to Create a new CRM record. Please select “Post” as the action and “Create a new CRM record” as the entity of the publisher. You can put the payload you want to send to Orderwise ERP into payload property in the data. Here is an example of the Possible Response after Creation. Alumio will send an API request to Orderwise ERP with URL /crm HTTP Client It’s the HTTP Client configuration or prototype you will use to access Orderwise ERP.
