Cloudsuite

​

Extra information

System documentation: CloudSuite API Reference

​

Connector package documentation

​

Table of Contents

• 1. Setting up HTTP Client CloudSuite
  • 1.1 Steps
• 2. Subscribing to entities from CloudSuite
  • 2.1 Steps
  • 2.2 General concept
• 3. Publishing entity to CloudSuite
  • 3.1 Steps
  • 3.2 General concept

​

1. Setting up HTTP Client CloudSuite

1.1 Steps

1. In the Alumio Dashboard, go to Clients -> HTTP Clients. Create a new HTTP Client and select CloudSuite HTTP Client as the HTTP Client.
2. Fill in the Base URI and choose the Authentication type (Access Token or OAuth 2) (For more information, see CloudSuite Authentication Reference)
3. Fill in the Access token if you choose Access Token for the Authentication type.
4. Fill in the Client ID, Client secret, Token URL, and Scopes if you choose OAuth 2 for the Authentication type.
5. You can optionally enable logging of requests to get the log of the authentication.
6. Save the HTTP Client for use.

​

2. Subscribing to Entities from CloudSuite

2.1 Steps

1. Go to Connections -> Incoming and create a new incoming configuration and select CloudSuite Subscriber as the subscriber.
2. Select the entity you want to subscribe to from CloudSuite.
3. Add any request parameters needed to subscribe to the entity.
4. You can optionally add a transformer to transform the request parameters into something you will request from CloudSuite.
5. Select the CloudSuite HTTP Client to use.
6. You can also optionally enable pagination to allow Alumio to fetch paginated entities.

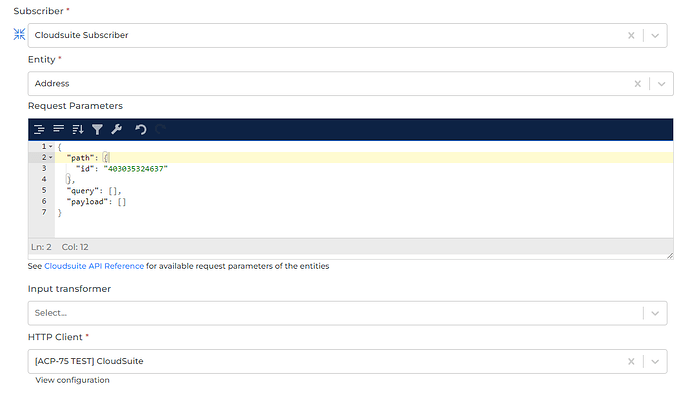

2.2 General Concept We follow CloudSuite documentation on building this connector, so you can easily use the connector based on CloudSuite API Reference. Entity The entity you want to subscribe to CloudSuite. Please refer to the entities from CloudSuite API Reference page. Request Parameters These are the parameters you can provide to get the needed entity based on the CloudSuite API Reference. Please look at the example below on how to fill the path field when subscribing “Address” entity. Based on the documentation, we can see that the endpoint requires “id” as a path. That is why we set the “id” inside the path key in the Request Parameters.

• Path is the path parameter of the URL. For example, the {id}.
• A query is a defined set of parameters attached to the end of a URL.
  Example: www.url.com?type=true&start=0

Alumio will then make a request to CloudSuite with the URL /address/403035324637 HTTP Client The HTTP Client configuration you will use to access CloudSuite.

​

3. Publishing Entity to CloudSuite

3.1 Steps

1. Go to Connections -> Outgoing, create a new outgoing configuration, and select CloudSuite Publisher as the publisher.
2. Select the Action that you want the publisher to perform with the data.
3. Select the CloudSuite entity you want the data to be published to.
4. You can optionally add any path data to the request on the key path.
5. You can optionally add any query data to the request on the key query.
6. You can optionally add any payload data to the request on the key payload.
7. Select the HTTP Client to use.

3.2 General Concept Like the subscriber, the publisher has similar methods on how to use it. The difference is the payload that will be submitted by the publisher originating from the data (from routes, from transformers in outgoing configuration), though you can also add or modify payload using the Request Transformer. Action Currently, we support Create (HTTP POST method), Update (HTTP PUT method), and Delete (HTTP DELETE method) on submitting data to CloudSuite. Entity We support publishing to most CloudSuite endpoints. Please refer to CloudSuite API Reference page. For example, we want to use “Delete an Asset”. Please select “Delete” as the Action and “Asset” as the entity of the publisher. Based on the documentation, we can see that the endpoint requires “key” as a path. That is why we set the “key” inside the path key in the data.

• Path is the path parameter of the URL. For example, the {id}.
• A query is a defined set of parameters attached to the end of a URL.
  Example: www.url.com?type=true&start=0
• Payload is the data contained within a request.

Alumio will send an API request to CloudSuite with URL /asset/123 HTTP Client The HTTP Client configuration you will use to access CloudSuite.
